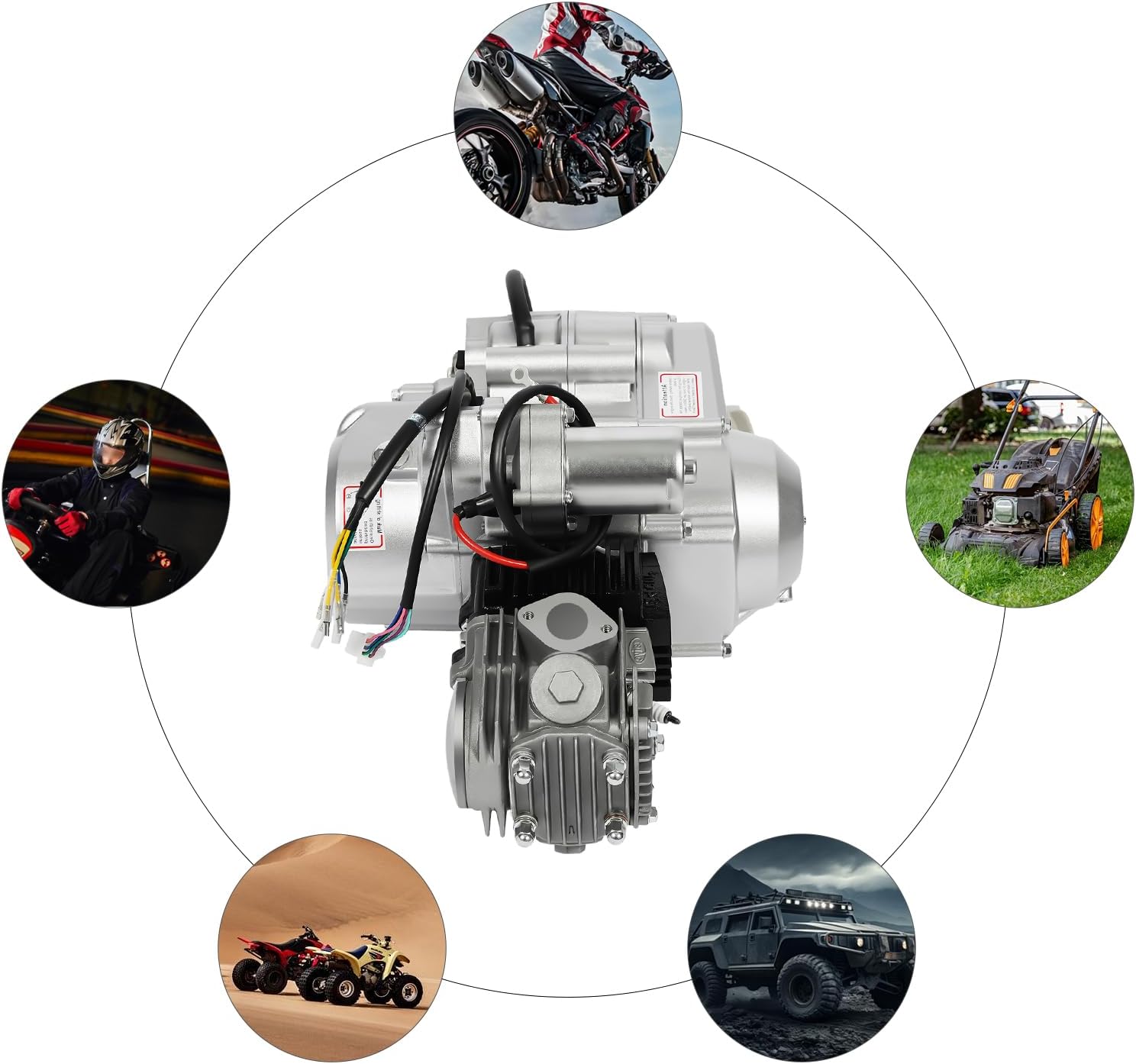

125cc Engine Motor, 4 Stroke Semi-Auto ATV Engine Motor Kit with Reverse and 3 Forward, Single Cylinder Air-Cooling Motor Electrical Start CDI for Go Kart Pit Dirt Bike ATV Buggy

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Specifications

• Condition: New
• Material: Iron, Aluminum
• Process: Die Casting, Painting
• Color: Silver
• Engine Type: Parallel 4-Stroke Single-Cylinder Engine
• Transmission System: Forward-Neutral-Reverse
• Starting Method: Electric Start
• Ignition Device: CDI
• Cooling Method: Air Cooling
• Starter Type: Foot Start
• Lubrication Method: Pressure/Splash
• Fuel Type: Gasoline
• Carburetor: PZ19
• Displacement: 125CC
• Maximum Power: 5.5KW
• Compression Ratio: 9:1
• Max. Speed: 7500±375RPM
• Idle Speed: 1500±100RPM
• Max. Torque: 8.5 N.m
• Front Sprocket: 420-17mm-14T
• Fuel Tank Capacity: 900ml/0.24gal
• Air Filter Diameter: 35mm/1.38in
• Cylinder Diameter*Stroke: 52.4*55.5mm/2.06*2.19in
• Top Mounting Hole Spacing: 92mm/3.62in
• Bottom Mounting Hole Spacing: 82mm/3.23in
• Bolt Spacing: 152mm/5.98in
• Way of Use: Direct Replacement
• Product Size: 48*36*30cm/18.9*14.17*11.81in
• Package Size: 50*37.5*32cm/19.69*14.76*12.6in
• Gross Weight: 21.95kg/48.39lbs
• Net Weight: 21kg/46.3lbs

Package Included

• 1 * 125CC 4 Stroke Engine Motor
• All Accessories for Assembly

【Type】Engine size: 125CC; Horizontal, single-cylinder, 4-stroke, air-cooled
【High Performance】Compression ratio: 9.0: 1; Gear siystem: 3 Forward, Neutral, Reverse; Start Method: Electrical Start; Ignition: CDI; Air Filter: 1.4” Carburetor: PZ19; Starter: Electric Start; Maximum net power/rpm : 5.8kw/7500rpm±375rpm; Maximum torque/rpm: 8.5N.m/5000rpm±250rpm; Idle speed: 1500RPM±100RPM
【Applicable models】125cc pit bike engine motor is suitable for Karting, Quad, off-road vehicle, ATV, Pit bike, off-road vehicle, off-road vehicle, pocket rocket. Long-term spare parts can be provided as needed. The installation is more complicated, and it is strongly recommended to invite professionals to install it
【Wiring usage】Five wires (plug): for gear indicator; yellow wire: for battery; pink (or yellow) wire: for battery; black and red wires: for signal triggering; green wire: for Ground; blue and white: used to trigger the coil
【You will get】Wiring + Kabi + Air filter + Chain box + Gasket and after-sales service. If you have any questions about the product, please contact us. We will reply to your information within 24 hours
