Geloo 12 Way Fuse Blocks 12 Volt Automotive, Marine Fuse Block with LED Indicator, ATC/ATO Waterproof Blade Fuses Box, Boat Fuse Panels Fuse Holder for Marine

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]

Product Description

12 Circuits with Negative Bus Fuse Box

Boat Fuse Block, Waterproof Fuse Panel with LED Warning Indicator Damp-Proof Cover – 12 Circuits with Negative Bus Fuse Box Holder for Car Marine RV Truck DC 12-24V, Fuses Included

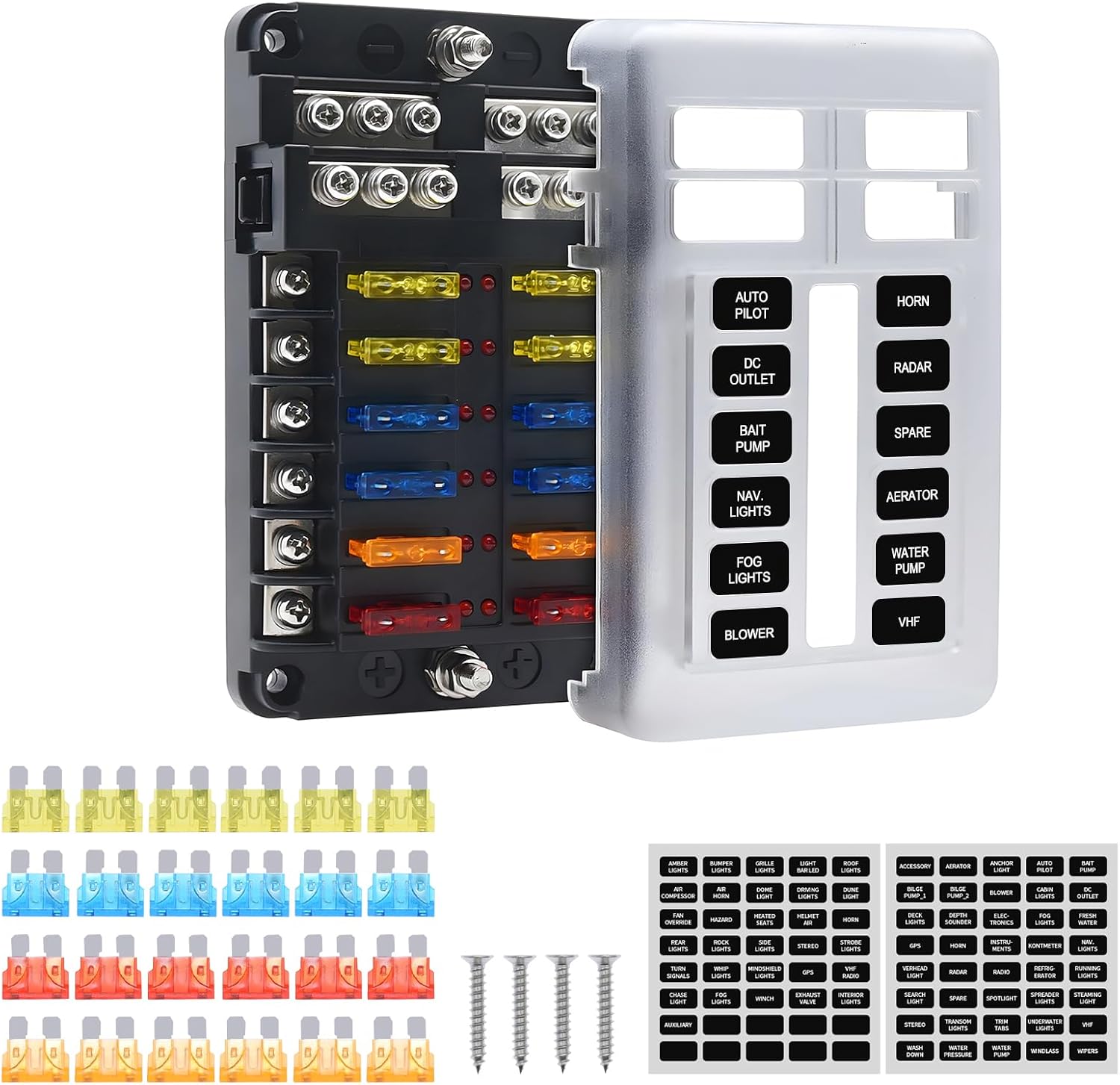

Product List: 6pcs x 20A Fuse 6pcs x 15A Fuse 6pcs x 10A Fuse 6pcs x 5A Fuse 1 x Fuse Box with Cover 2pcs x sticker 4pcs x screws

Indicator effect: When the red LED lights, it means that the fuse has been disconnected, need to replace the fuse in order to continue to run

Product installation range: can be installed in cars, villas, RVs, buses, yachts, boats and other use above

Product range: can directly connected to the car on board any electrical appliances on the line

(such as: roof lights, car headlights, as wide lights, fog lights, warning lights, car refrigerator, car charger, car fan, car TV, etc.

Fuse effect: When the circuit fails or abnormal, accompanied by rising current, and the rising current may damage some important devices in the circuit or expensive devices, It is possible to burn the circuit or even cause a fire. The fuse protects the electronic equipment from excessive current damage and avoids serious damage caused by internal equipment due to internal faults.

Therefore, each fuse has a rated size, when the current exceeds the rated size when the fuse will be blown.

If the circuit is properly placed in the fuse, then the fuse will rise in the current to a certain height and a certain temperature,

the fuse itself cut off the current, so as to protect the safe operation of the circuit.

SPECIFICATIONS

Input Voltage 12V-24V DC Maximum Amperage 100A per block/ 30A per circuit Maximum Voltage 32V Quantity of Fuse Slots 12 Main Line Terminal M5 threaded stud Main Wire ＃4-6 Single Wire Terminal M4 threaded stud Single Wire #12-16 Fuse Type Standard(ATC or ATO) Type Fuse Blocks

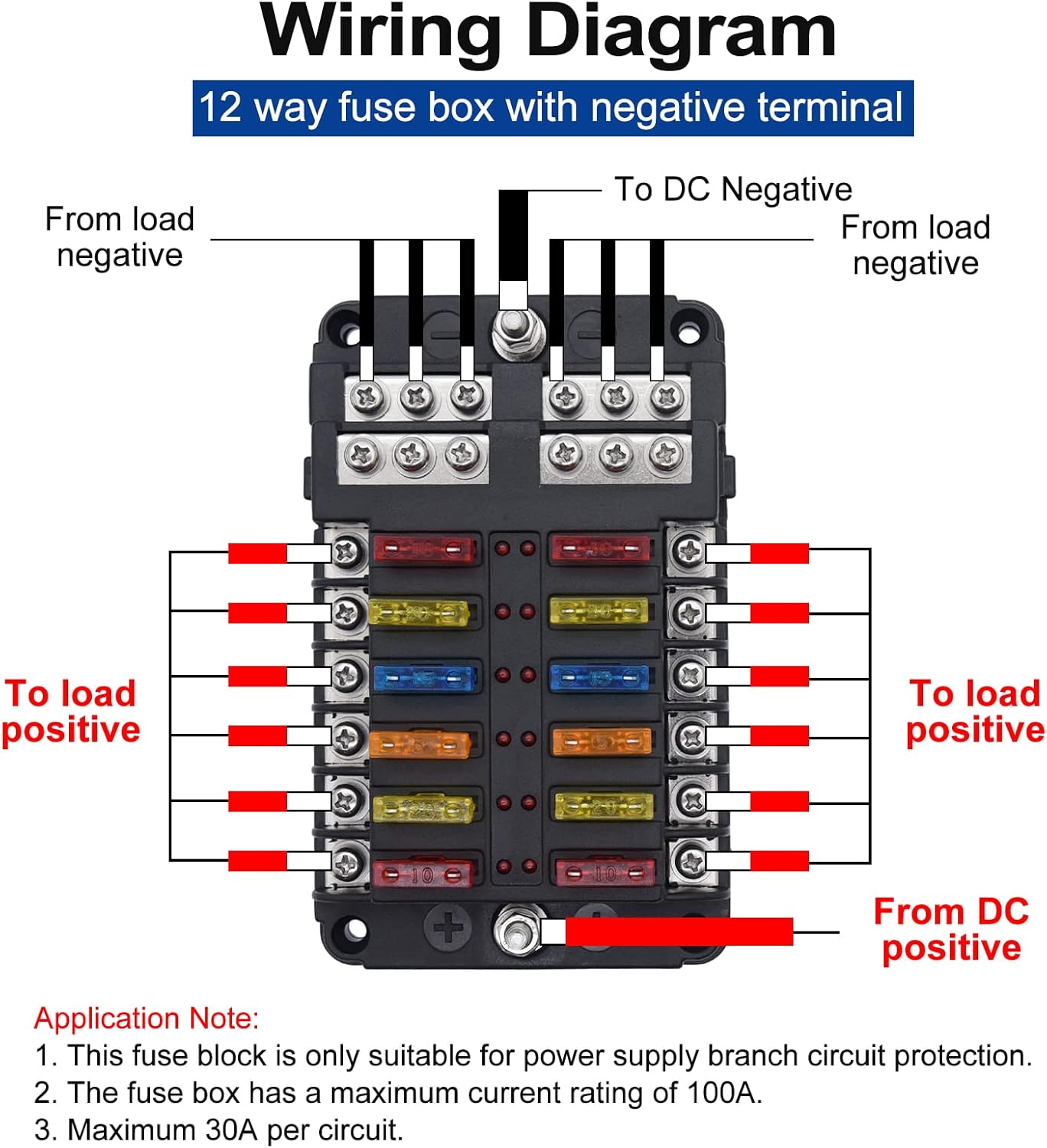

INDEPENDENT WIRING ：12 way marine fuse block with negative bus and clear PC cover, splash and dust resistant construction can add extra protection for your fuse box. It offers 12 dedicated fuses and 12 ground positions, can be independent wiring to keep the fuse block clean
HIGH QUALITY MATERIAL ：12V Fuse block waterproof made of environment friendly PBT material, this fuse holder meets all the standards of an ideal fuse panel. It is mechanically strong, insulated, heat resistant and flame resistant. There will hardly cause any issue like produce fracture, deformation, combustion or short circuit phenomenon
LED WARNING LIGHT, FAST RECOGNITION ：When the current exceeds the rated specification, the fuse will blow and the red LED warning light will come on immediately. Checking and replacing the fuse is safe and easy, thus protecting the circuit operation
GOOD ELECTRICAL CONDUCTIVITY ：All busbars and fuses are nickel-plated copper with corrosion resistance and excellent electrical conductivity. The marine fuse box capacity is 100A, and the maximum current of each fuse is 30A
YOU WILL GET : 12 Way blade fuse block package includes: 20A Fuse*6, 15A Fuse*6, 10A Fuse*6, 5A Fuse*6, DIY Stickers Labels *1, Screws*4. Boat fuse block widely used in cars, marines, tankers, boats, rv, truck, moto homes,suv, yacht, ships and other tools overhead lights, car headlights, view-width lights, fog lights
