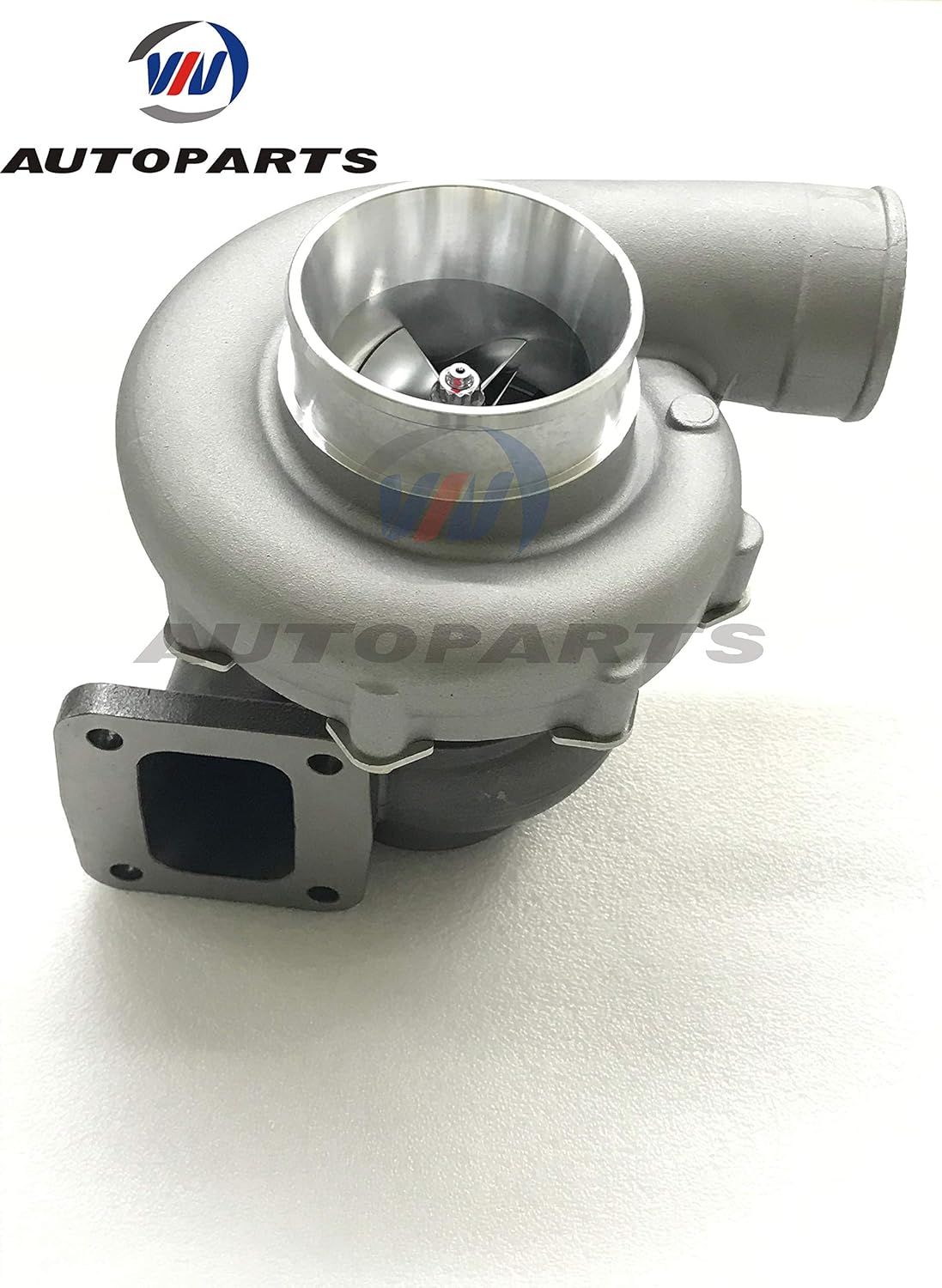

Billet T78 7875 T4 A/R.96 A/R.75 3″ V band Oil Performance 800HP-1000HP Turbocharger

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
This turbo will be capable of supporting 800+ horse power and great for the larger cubic inch engines to keep back pressure under control. Most of the similar compressor spec turbos on the market are 65mm or smaller turbine wheels which is a MAJOR limiting factor. Our new 75mm turbine wheel is going to allow for higher power number when paired up with the larger 78mm upgraded billet compressor wheel. This will keep the back pressure in check as well and keep from over-spinning the turbocharger.
Turbo model
T4-96 7875BILLET-96-1
bearing type:Journal bearing
cooled type:JUST oil cooled
horsepower:800-1000 horse power
Compressor details
a/r 0.75

air inlet 4″ 101.6mm
air outlet 3″ 76.2mm
inducer 78.00mm exducer 102.40mm
Turbine details
Oil Filter:M12×1.5
a/r 0.96
turbine housing flange:T4
outlet: 3 inch V-band
inducer 85.00mm exducer 75.00mm

ISO 16949, ISO 9001 Qualified.
800-1000 horse power
Precisely balancing test by SCHENCK
Contructed with High Quality Material with 42 CrMo high-strengh shaft rotor; Built for Durability and Strength
Perform endurance, thermal and vibration tested prior to Packaging
