Adjustable Voltage Regulator 12V DC 4 Wires Voltage Regulator Rectifier for Motorcycle ATV Dirt Pit Bike Scooter Moped

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
If you have any questions, you can consult us.
We hope you will be satisfied with our products and services and give you a better experience.

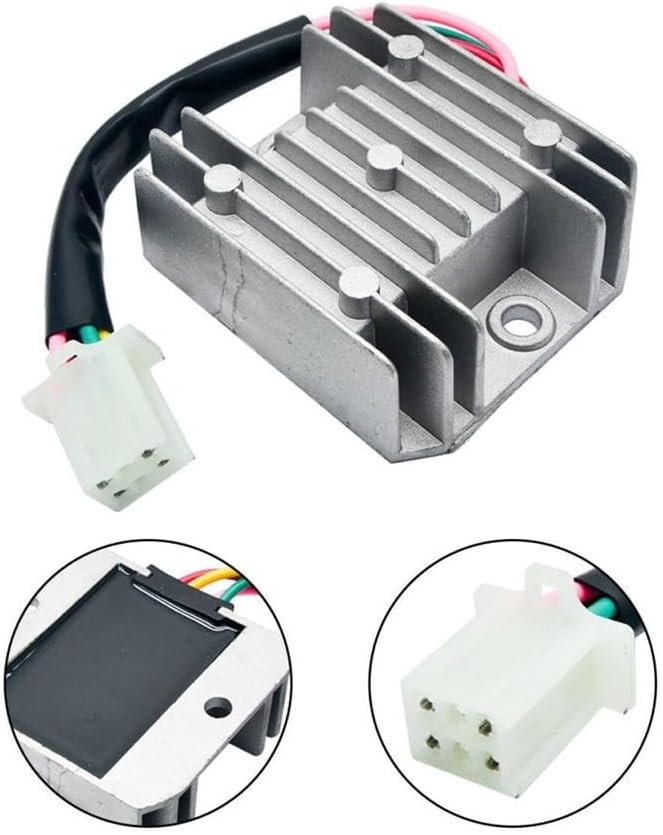

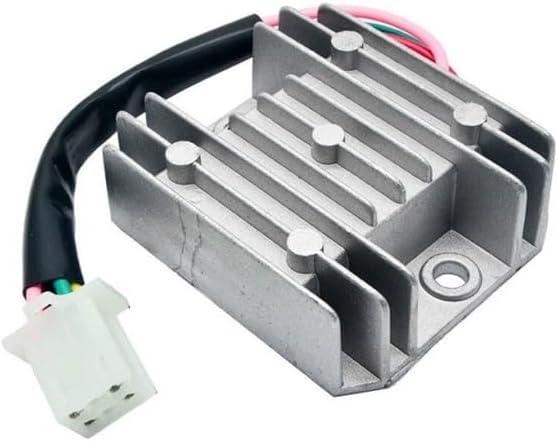

12V DC 4 Wires Voltage Regulator Rectifier for Motorcycle Dirt Pit Bike Scooter Moped
Specification:
Type: 12V DC 4 wire regulator rectifier
No. of AC input phases: 2
Rectification: full wave
Overall length: 68mm
Overall width: 58mm
Overall height: 23mm
Cable length: 170mm (approx)
Distance between mounting Holes: 51-55mm
Mounting hole diameter: 6x8mm
Connector type: 4 way 6.3mm Motorcycle Connector
Max watt: 110 watt
Charging output current: 0-4A
Wire: yellow, white or pink = AC Inputs (from the stator to the regulator rectifier)
Red = V (from the regulator rectifier to the positive battery terminal via a fuse)
Green = V- (from the regulator rectifier to the negative battery terminal)
Black = Vsense
Package include:
1×4 wire regulator rectifier
Material: Volt Regulator Rectifier use Aluminum/Plastic/ Copper
Overvoltage Elimination: This motorcycle voltage regulator uses solid state electronics to help suppress surges.
Stable & Reliable This rectifier has the function of battery charging protection, Prevent battery overcharging and improve charging capacity.
Motorbike Adjustable Voltage Regulator for your motorcycle, widely used and very practical.
Please confirm whether your model meets the product requirements before purchasing.
