Product Description

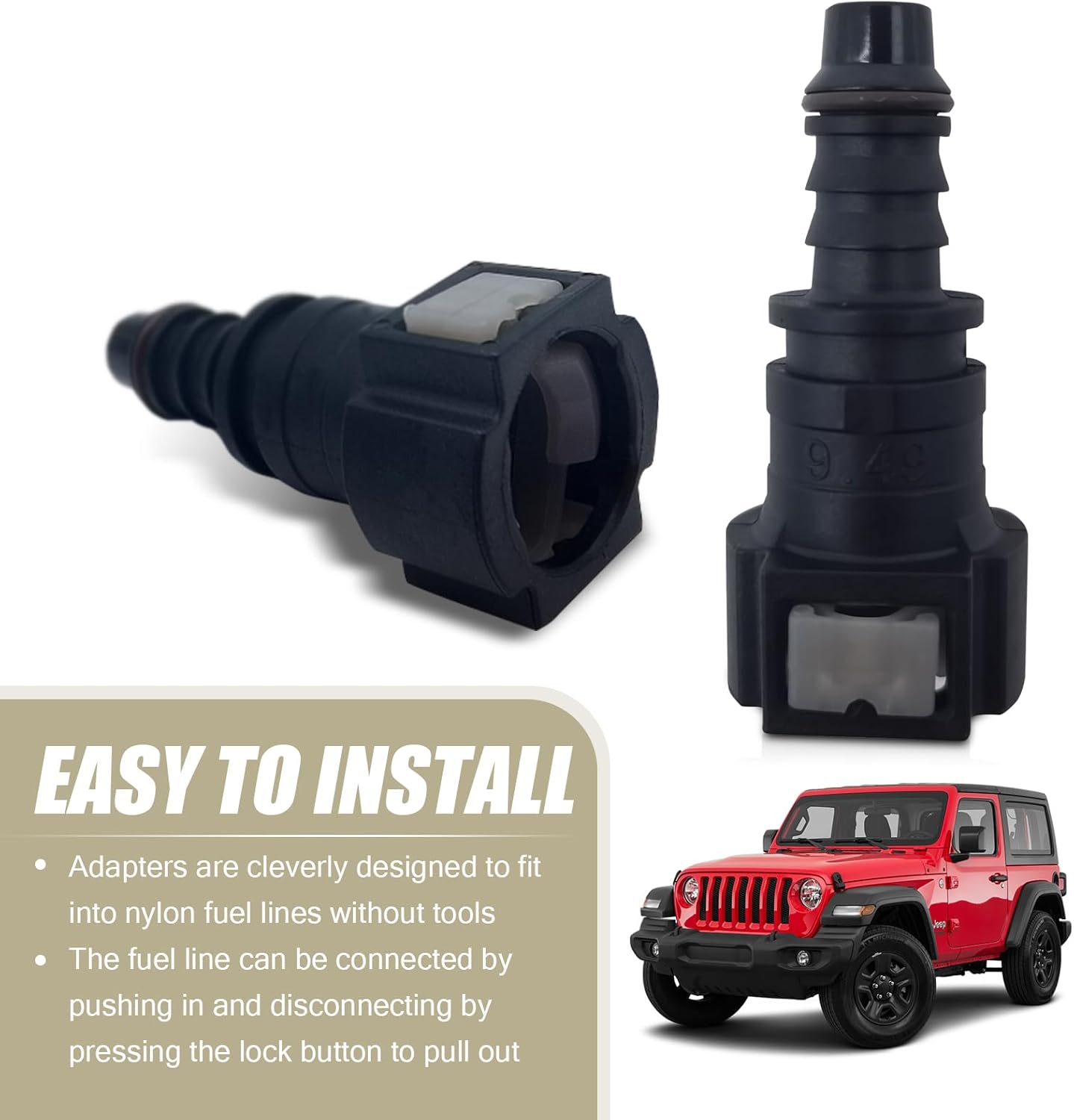

9.49-ID8 elbow automobile fuel line quick connectors
9.49-ID8 straight automobile fuel line quick connectors

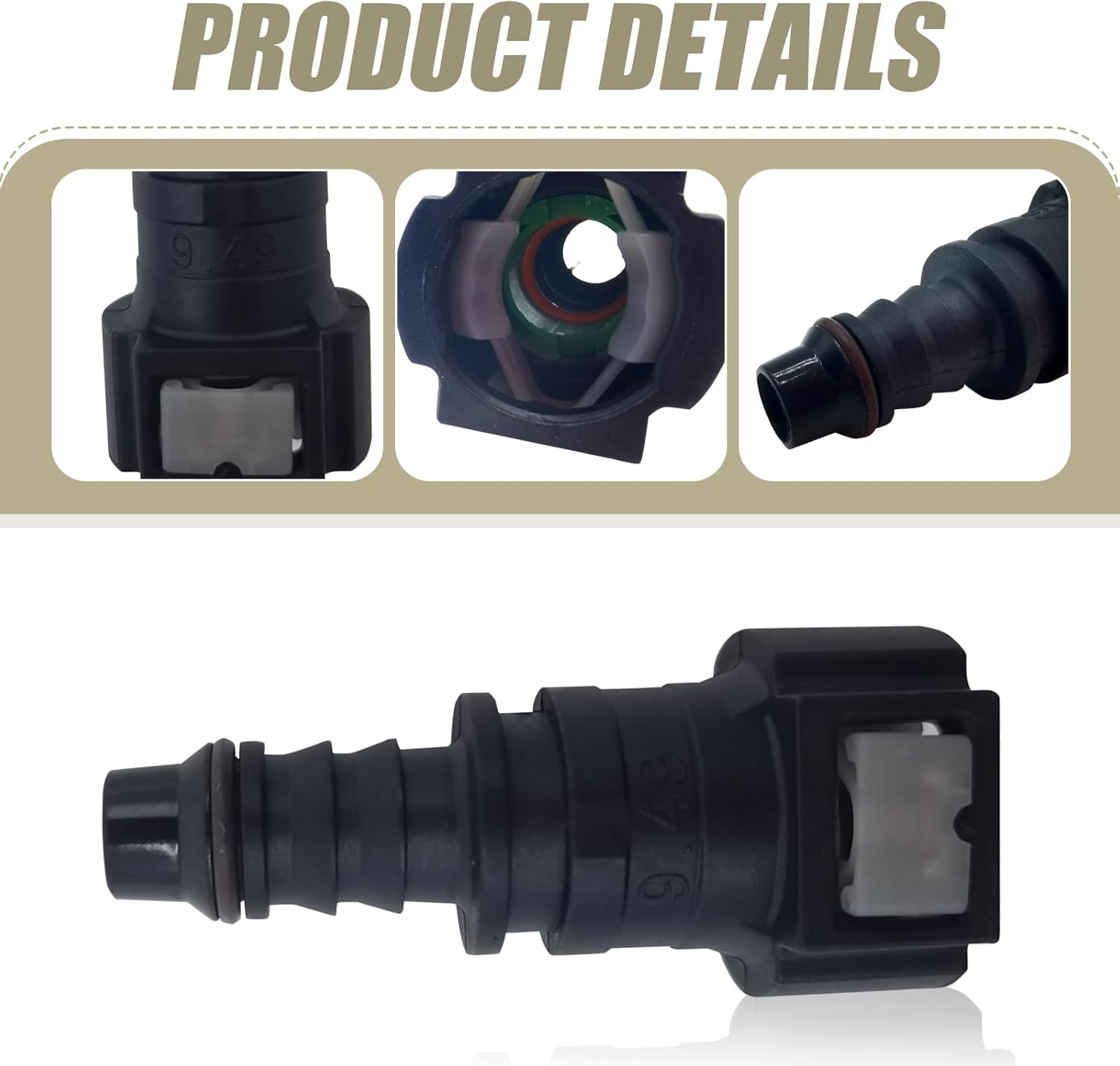

The sealing ring can ensure good sealing performance in high-pressure and high-temperature environments
Working environment and parameters
Fluid media and applications of quick couplings: gasoline and diesel transportation systems, or methanol, ethanol, natural gas transportation systems, or their steam emission or volatilization control systems.
The maximum working pressure of the quick connector is up to 500kPa, 5bar, and the working vacuum degree of the quick connector is as low as -50kPa- 55 bar (72psig)
The working temperature range of the quick connector is -40 ° C (-40 ° F) to 120 ° C (248 ° F)
Sealing Ring: The product is equipped with a sealing ring to ensure good sealing under high pressure and high temperature environments, avoiding fuel leakage and air from entering the system.
Safety and Reliability: It has been designed and tested to ensure stable and reliable operation during the operation of the car, avoiding oil leakage or other safety hazards caused by connection problems.
Quick Connection: It is designed as a quick connection type, which can be quickly installed and detached, reducing the time and labor cost required for maintenance and replacement, and improving maintenance efficiency.

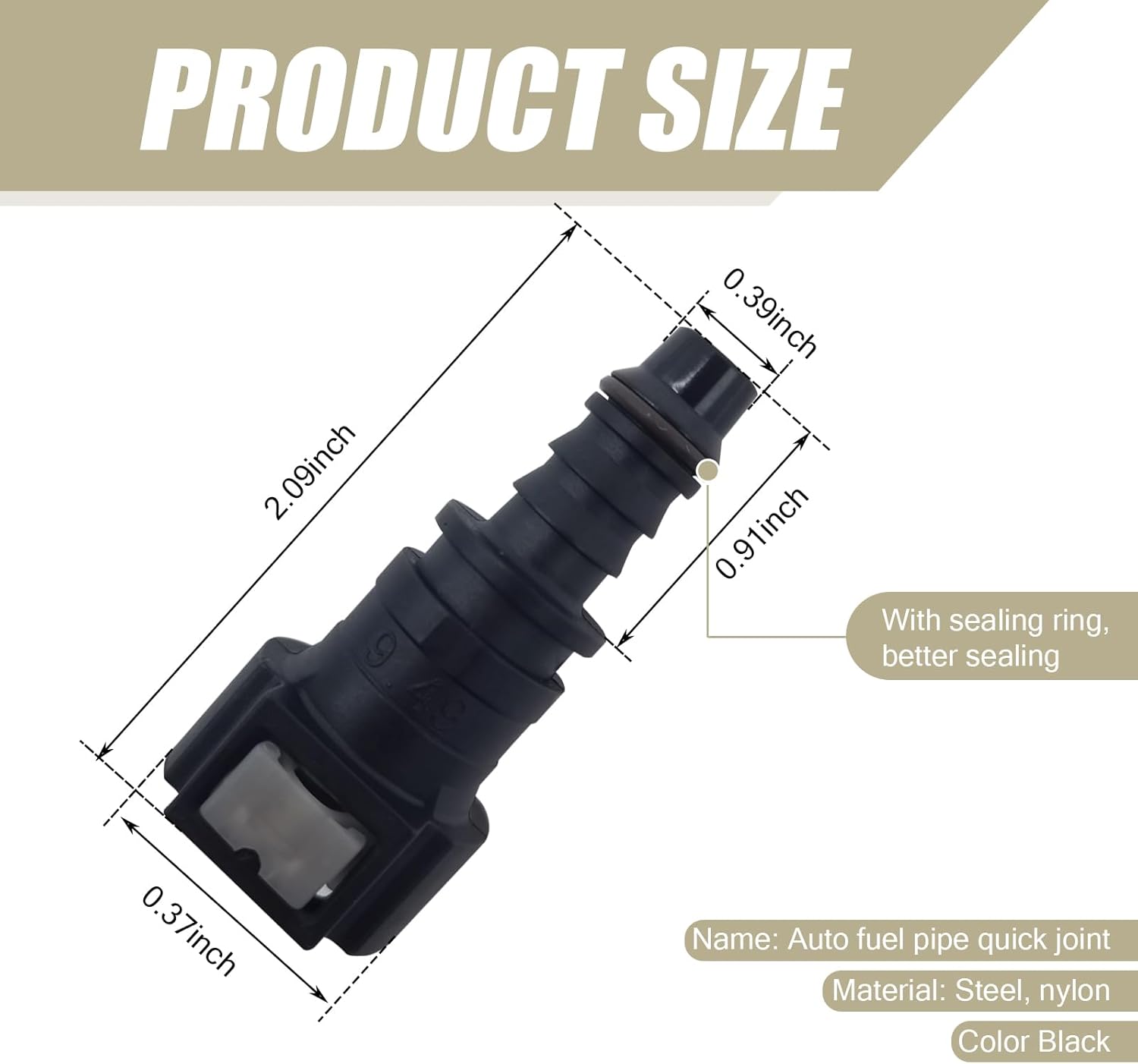

Product Specifications: 9.49-ID8 straight is a quick connector with a specification of 9.49, used to connect nylon tubes with an inner diameter of 8MM, suitable for 9.49 male connectors. Make sure the connector can accurately match the specific pipe size. Please check the measurement dimensions before placing an order.
Box Contents: You will receive two 9.49-ID8 straight automobile fuel line quick connectors with seals, 0.42″ bamboo OD. If you have any questions about use, please feel free to contact us directly, we will solve the problem for you within 24 hours on weekdays.
